Product Overview

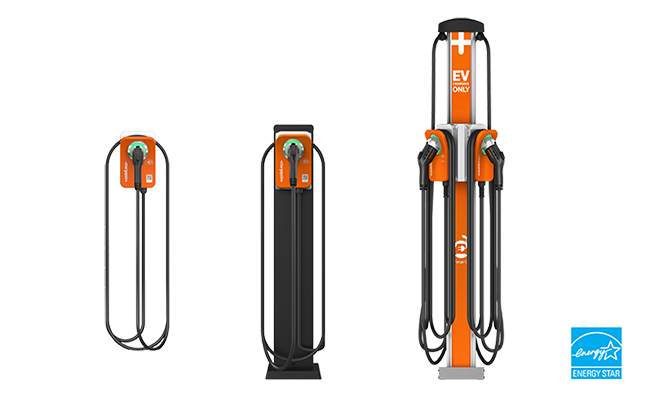

ChargePoint CPF50
AC charging for auto dealerships, apartments and condos
CPF50
Configuration Options
Mounting
Pedestal, wall
Number of ports
Single, dual
Cable length
18' (5.5 m), 23' (7 m)
Specifications
Connector/port type
SAE J1772™, SAE J3400™ (NACS)
Electrical output
Up to 12 kW (50A) per port
Connectivity
Cellular 4G LTE
Authentication and payment
RFID, tap to charge (NFC), remote via mobile app or in-vehicle
Display
None
Network protocol
OCPP 1.6
Operating temperature
-40°F to 122°F (-40°C to 50°C)
Station enclosure
Type 3R per UL 50E
Safety and compliance
UL and C-UL listed; complies with UL2594, UL2231-1, UL 2231-2. NEC Article 625–compliant
For Canada CSA C22.2, No. 280, 281.1, 281.2, CED UL and C-UL listed per UL916 Energy Management Equipment.
For Canada CSA C22.2, No. 280, 281.1, 281.2, CED UL and C-UL listed per UL916 Energy Management Equipment.
Certifications
ENERGY STAR® certified
